Genova Overview Range
Inspired. Efficient. Refrigeration
AWARD WINNING
Genova Panorama MC
We are extremely proud to have won the NFRN Eco-initiative of the year 2017 and to be shortlisted for three industry awards with the RAC and ACR.
![RAC Cooling Finalist 2017 RAC Cooling Finalist 2017](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/rac-cooling-2017.png)
![NFRN Winner 2017 NFRN Winner 2017](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/nfrn-winner-2017.jpg)
![ACR Finalist 2018 ACR Finalist 2018](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/acr-finalist-2018.jpg)
![Pastorfrigor Genova Panaoama MC Pastorfrigor Genova Panorama MC](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/pastorfrigor-genova-panorama-mc-scontornata-web.jpg)

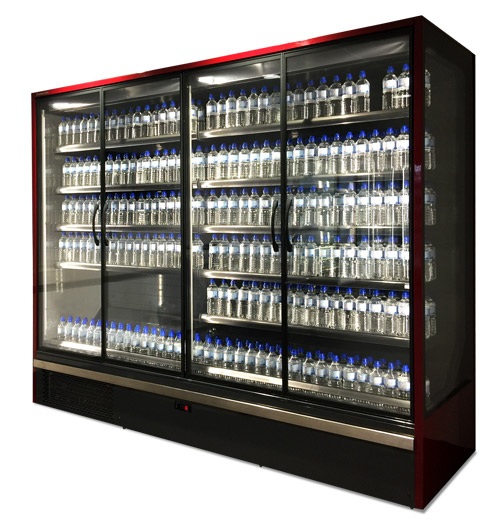

GENOVA PANORAMA MC
The Genova Panorama MC demonstrates that Pastorfrigor are at the cutting edge of not just design but technology. The Genova Panorama MC is the ideal solution to maximise chilled display fully optimised with technology and efficiency.
…but with a real difference!
Lower Energy Bills
Uses 47% Less energy than a standard glass door integral multideck.
That’s a saving of £440 per year for a 2.5m section.
Comparison
Classic Solution |
Micro Channel |
Saving |
|
Consumption | 24.5 | 12.9 | – 47% |
GWP | 1,674 | 3 (F-gas ready) | |
TEWI | 6,029 | 2,354 | – 60% |
Energy cost | £975* | £517 | – 47% |
* Figures based on GENOVA Model: LF2500 – Plug-in cabinet with glass doors
It’s very quiet
The running noise is as low as 52DbA – Compare that to the typical noise in a convenience store that is practicably a whisper!

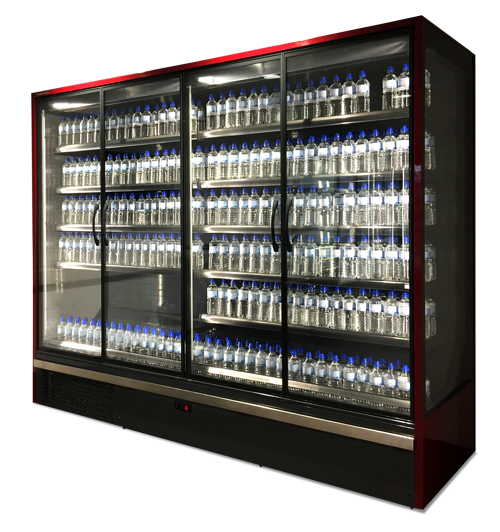

![Pastorfrigor Genova Panorama MC Pastorfrigor Genova Panorama MC](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/genova-panorama-mc-scontornata-nobg-lg.png)
Less heat in your store
The Micro Channel technology and refrigerant used in the Genova Panorama MC means that the cabinet will increase the ambient temperature by only 2c in technical terms that is just 0.85 kwh or 2,809 BTU’s per 2.5m section.
![No more warm chocolate No more warm chocolate](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/no-more-warm-chocolate.png)
A valid alternative to remote
The significant reduction in energy consumption. The noticeable lowering of the noise level and heat rejection compared to a normal integral makes the Genova Panorama MC a more than valid alternative to a conventional remote system.
Open your store sooner with the Genova Panorama MC you only need to plug it into a standard 13amp socket and away you go.
![No more warm chocolate No more warm chocolate](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/plug.jpg)

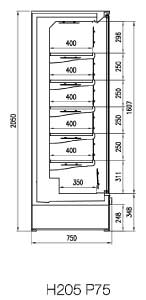

![H205 P75 H205 P75](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/h205-p75.jpg)

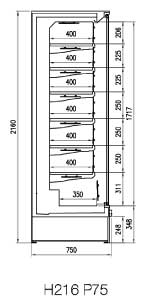

![H216 P75 H216 P75](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/h216-p75.jpg)

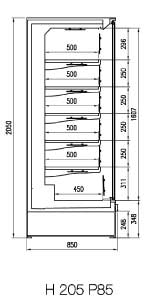

![H205 P85 H205 P85](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/h205-p85.jpg)

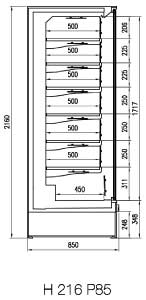

![H216 P85 H216 P85](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/h216-p85.jpg)
STANDARD EQUIPMENT P75 & P85
- Tier 400mm Shelving (P75 Only)
- Tier 500mm Shelving (P85 Only)
- 39mm Epos Ticket edging
- Panoramic hinged doors
- Vertical LED Lighting
- Temperature Class 3M1
- R290 Refrigerant
- 13-amp UK Plug top
- Removable Condenser grill
- PVC Bumper
- Air condensing unit
- Hot gas defrost
- Standard Controller
- Low Energy Fans
- Silver ext. / White int.
Genova Panorama MC
![Genova Panorama MC Colours Genova Panorama MC Colours](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/genova-panorama-mc-colours.jpg)

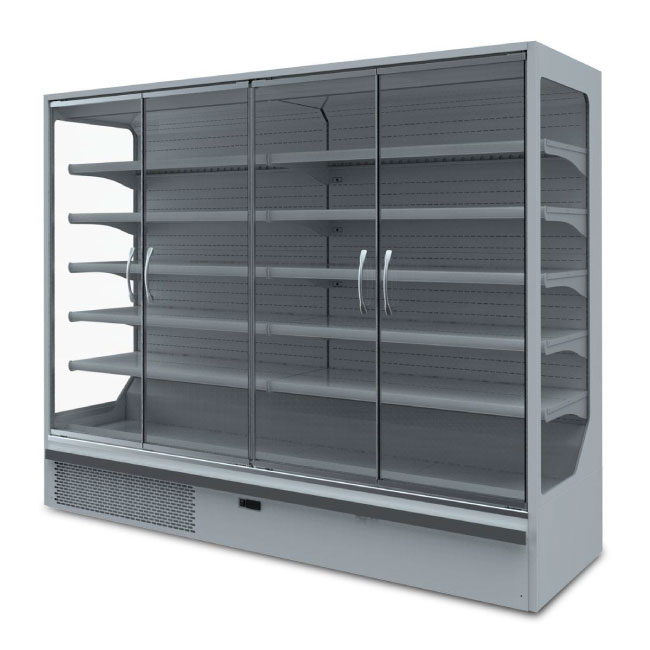

![Genova Panorama MC Genova Panorama MC](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/genova-panorama-mc.jpg)
1250 |
1875 |
2500 |
|
P75 H2050 | • | • | • |
P75 H2150 | • | • | • |
P85 H2050 | • | • | • |
P85 H2150 | • | • | • |
End Walls (Pair) | 2 x 40mm (80mm) |
P = Depth H = Height
A Force of Nature
Would you prefer to completely eliminate heat rejection from your store refrigeration?
![Pastorfrigor Genova Panorama MC Pastorfrigor Genova Panorama MC](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/genova-panorama-mc-scontornata-nobg-lg.png)
Water Loop System
The Genova Panama MC display cabinet can pre-prepared for both air and water condensation so you could have air (winter) and water (summer).
![No more warm chocolate No more warm chocolate](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/water-loop-system.png)
Your value of choice lives in the future
![f-gas-ready](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/f-gas-ready.jpg)

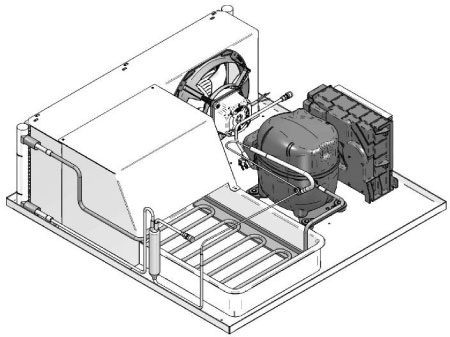

F-Gas Ready
Designed and conceived using R290 Refrigerant, the Genova Panorama MC is designed to fully meet the parameters set by the EU and to be utilised beyond the 2020 deadline for lower GWP refrigerants.
![F-Gas Ready F-Gas Ready](https://www.pastorfrigorgb.com/wp-content/uploads/2017/12/f-gas-diagram.jpg)
Micro Channel Technology
Micro channel evaporators and condensers are significantly smaller compared to standard copper and finned types
Greater Recyclability
Aluminium total weight 6.2kg
Small Dimensions
80% smaller than a standard evaporator
Reduced Consumption
On average 25% to 50% with a combination of lower gas charge and efficient refrigerants such as R290.
Less Weight
30% Less than standard evaporator
Low Gas Charge
60% Reduction with HFC and 80% with HC
Minimal Environmental Impact
Overall a greener solution for the planet
